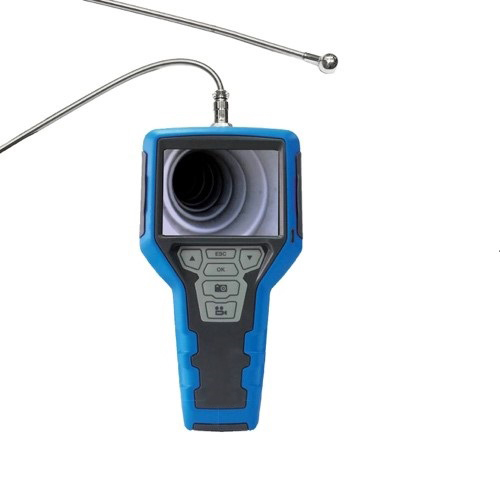

5.5mm Borescope Camera Cable (6500S)

Cable

Tub OD

5.5mm

Length

5M

Image Sensor

1/18" Optical format CMOS image sensor

Pixel Count (Dynamic/Static)

640(H)*480(V) (307200 Pixels)

Exposure

Automatic

Auto White Balance

Automatic

Video Format

NTSC

Sensitivity

1.3 V/Lux-sec

Pixel Size

3.6 x 3.6

Interface

Composite Video

S/N Ratio

46dB

DC Voltage In

3.9V+/- 5%

Power Consumption

465mW(LED off), 610mW(LED max)

Housing

Stainless Steel

Lens Fno

2.8

IR cut/AR Coating

Yes/Yes

Field of View(FOV)

67 degrees

Depth of Field (DOF)

1.5cm 6cm

Light Source

Number of lamps

4 LED

Brightness Control

Manual

Lamp Type

0603 package LED

Lamp Output

1500Lux at 20mm

Lamp Life

1000 hrs., median

Operating Environment

Tip Operating Temperature

-20 degrees to 60 degrees C (-4 degrees to 140 degrees F)

Storage Temperature

-20 degrees to 70 degrees C (-4 degrees to 158 degrees F)

Relative Humidity

95% max

Waterproof

IP67(Insertion tube and tip)

Hazardous Environments

Not rated for use in hazardous environments
